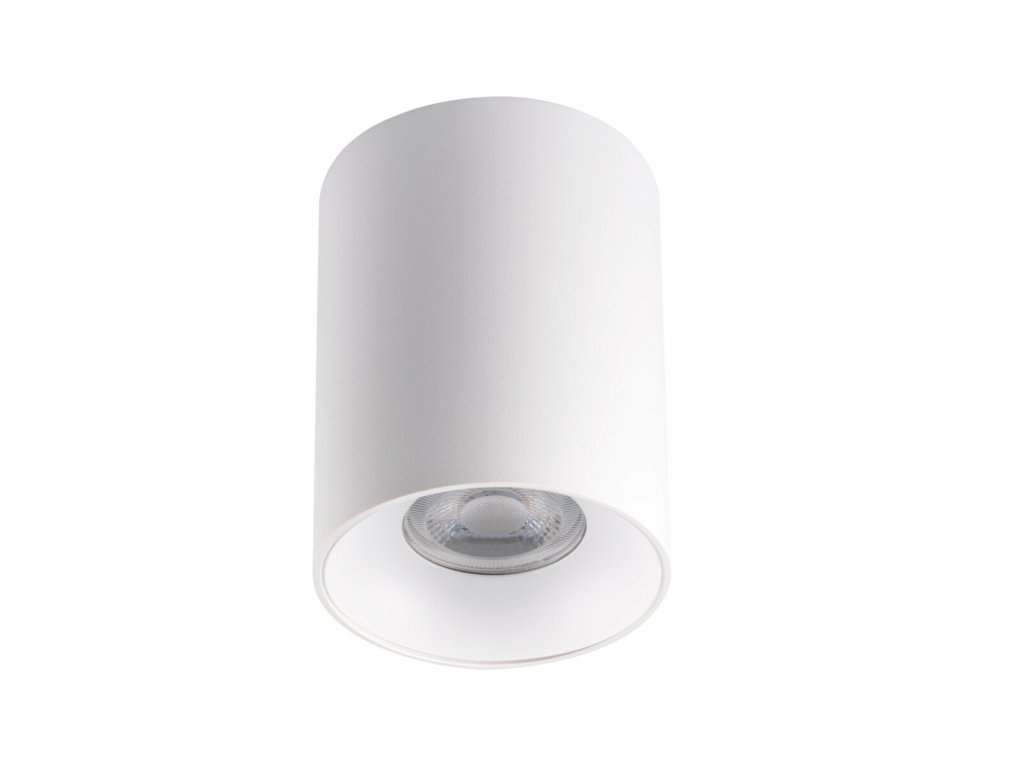

Surface Downlight 24V Dual White RITI 8W
24V Dual White design spotlight with 8W power consumption.
| Category: | Downlights |
|---|---|
| Warranty: | 3 years |
| Voltage: | 24V DC |
| Power: | 4W / 8W / 4W |
| Luminous flux: | 293lm / 745lm / 459lm |
| Color temperature: | Range (2000K – 6000K) |
| Beam angle: | 60° |
| Dimmable: | Using a PWM dimmer |
| CRI: | Ra>90 |
| Body material: | Aluminium |
| Dimension: | 110x85mm |
| IP Rating: | IP20 |
| Certification: | CE, RoHS |
| Version: | Surface |
Wiring:
Red wire: +24V
Yellow wire: WW 2000K
White wire: CW 6000K
-
Protokol o měření / Test Report (221.5 kB)
-
Montážní návod / Installation instructions (723.2 kB)
-
Prohlášení o shodě / Certificate of Conformity (1.8 MB)
